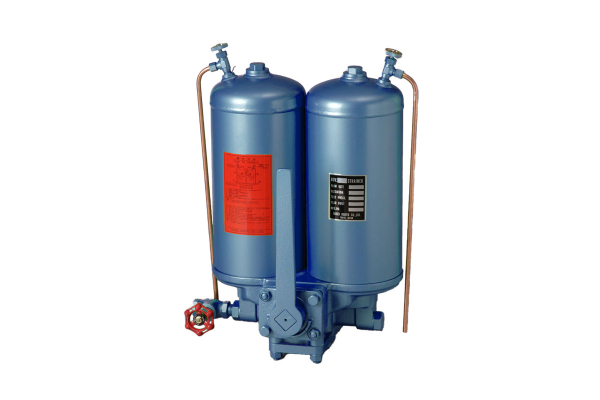

Duplex filter
Application

Duplex filter is used to continuously operated lublication system.

The seals are modified the it can also be used as a fuel oil filter.
Features

・Element can be replaced without stopping operations.

・Element backwashing (cleaning) can be done by using the duplex filter change handle.

・The vertical piping can be changed to the horizontal piping by using optional oil pan.

Download

Specifiations

Item Standard Spec. Option
Corresponding fluid Mineral oil Please ask us for details.
Maximum working pressure 0～0.6MPa -
Indicator - -
Relief valve (Bypass) - -
Connection Weld flange type -
Magnet - -

ItemsModel

BDV

Inner diameter

Code Inner diameter
03 10A
04 15A
06 20A
08 25A
10 32A
12 40A
16 50A

Oil Pan*1

Code Oil pan
- n/a
SO-R Attached (right to left flow*)
SO-L Attached (left to right flow*)

*Flow direction of oil pan as seen from the handle side.

Filtration

Code Filtration
Notch wire
50UK 50μm
200K 200Mesh
150K 150Mesh
100K 100Mesh
60K 60Mesh

P

BDV

Inner diameter

Code Inner diameter
03 10A
04 15A
06 20A
08 25A
10 32A
12 40A
16 50A

Filtration

Code Filtration
Notch wire
50UK 50μm
200K 200Mesh
150K 150Mesh
100K 100Mesh
60K 60Mesh

Set type*2

Code Sealing parts set
SP

For element

replacement
SA For overhaul

BDV

Inner diameter

Code Inner diameter
03 10A
04 15A
06 20A
08 25A
10 32A
12 40A
16 50A

Option

Code Oil pan
- n/a
SO Attached

*1　Oil pan for inner diameter of 03 and 04 is no longer manufactured.

*2　Sealing parts set for element replacement (Code "SP") is for 1 filter. 2 sets are required for duplex filter assembly.

Filter Model example：BDV-08-SO-R-100K

Element Model example：P-BDV-08-100K

Seals  Model example：SA-BDV-08-SO



■ Model code of replacement element consists of two types: ”Individual code” and "Common code", however it represents same product.

”Individual code” :Used in drawings and nameplate.

　　Model example：P-BDV-08-100K

"Common code" :Used in vouchers and tag.

　　Model example：P-BCV,BDV-08,10-100K
