AK

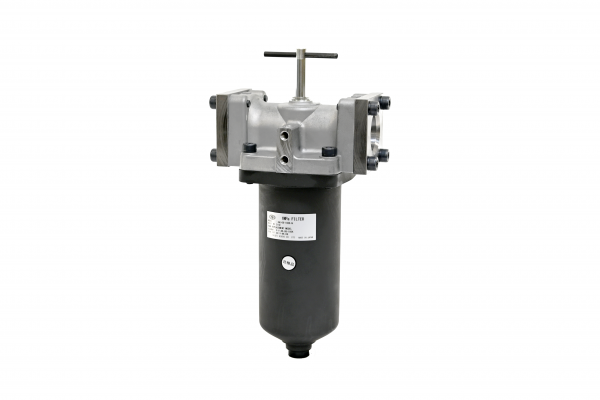

| Type | Notch clean filter |
|---|---|
| Application | Element cleaning by handle rotation on the top of filter. Best for a system where filter is often clogged with large amount of particle. |
| Features |
・The non-woven, single layer construction notch wire material makes for easy cleaning when clogged. ・Delivers stable filtration accuracy with a very small possibility of gaps. ・Pipe connection type is "Rc threaded" and "flange". (except for size 03, 04.) |
Download
Specifiations
| Item | Standard Spec. | Option |
|---|---|---|
| Corresponding fluid | Mineral oil | Phosphate ester oil, water glycol oil |
| Maximum working pressure | 0-1MPa | - |
| Indicator | - | - |
| Relief valve (Bypass) | - | - |
| Connection | Rc threaded type | Can be modified with an optional weld flange type excepr for 04(15A),06(20A) |
ItemsModel
Fluid type*1
| Code | Fluid type |
| - | Mineral oil |
| F | Phosphate ester oil |
| G | Water glycol oil |
AK
Inner diameter
| Code | Inner diameter |
| 04 | Rc1/2 |
| 06 | Rc3/4 |
| 08 | Rc1 (25A) |
| 10 | Rc1 1/4 (32A) |
| 12 | Rc1 1/2 (40A) |
| 16 | Rc2 (50A) |
Filtration
| Code | Filtration |
| Notch wire | |
| 40UK | 40μm |
| 50UK | 50μm |
| 200K | 200Mesh |
| 150K | 150Mesh |
| 100K | 100Mesh |
| 60K | 60Mesh |
Option
| Code | Companion flange *2 |
| - | n/a |
| N | Attached |
P
Fluid type*1
| Code | Fluid type |
| - | Mineral oil |
| F | Phosphate ester oil |
| G | Water glycol oil |
AK
Inner diameter
| Code | Inner diameter |
| 04 | Rc1/2 |
| 06 | Rc3/4 |
| 08 | Rc1 (25A) |
| 10 | Rc1 1/4 (32A) |
| 12 | Rc1 1/2 (40A) |
| 16 | Rc2 (50A) |
Filtration
| Code | Filtration |
| Notch wire | |
| 40UK | 40μm |
| 50UK | 50μm |
| 200K | 200Mesh |
| 150K | 150Mesh |
| 100K | 100Mesh |
| 60K | 60Mesh |
Set type
| Code | Sealing parts set |
| SP |
For element replacement |
| SA | For overhaul |
Fluid type*1
| Code | Fluid type |
| - | Mineral oil |
| F | Phosphate ester oil |
| G | Water glycol oil |
AK
Inner diameter
| Code | Inner diameter |
| 04 | Rc1/2 |
| 06 | Rc3/4 |
| 08 | Rc1 (25A) |
| 10 | Rc1 1/4 (32A) |
| 12 | Rc1 1/2 (40A) |
| 16 | Rc2 (50A) |
Option *Only for "SA"
| Code | Companion flange *2 |
| - | n/a |
| N | Attached |
*1 For fluids other than the above fluids. Please ask us for details.
*2 Companion flange is not available for size of 04 and 06.
Model number Model example：G-AK-08-150K-N
Element Model example：P-AK-08-150K
Seals Model example：SP-G-AK-08-N
